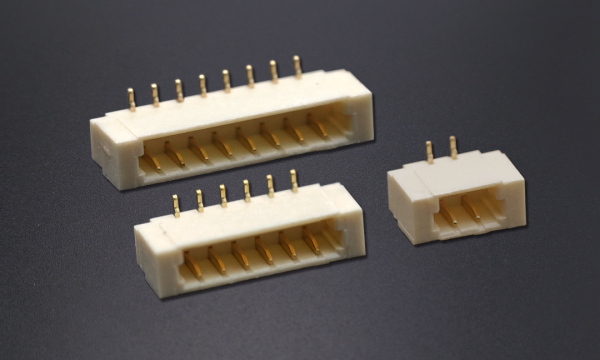

FWF08001 Wafer 0.80mm 180°Vertical (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF08001-S02S13W5M
Wafer 0.80mm ,2Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 13 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S02S14W5M
Wafer 0.80mm 180°Vertical 2Circuits (SMT)(HF)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S02S24W5M
Wafer 0.80mm 180°Vertical 2Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

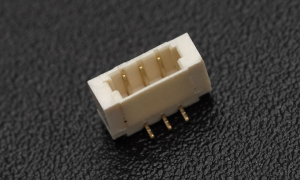

FWF08001-S03S13W5M
Wafer 0.80mm ,3Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 195 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S03S14W5M
Wafer 0.80mm 180°Vertical 3Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S03S24W5M
Wafer 0.80mm 180°Vertical 3Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S04S13W5M
Wafer 0.80mm ,4Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 1183 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S04S14W5M
Wafer 0.80mm 180°Vertical 4Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S04S24W5M
Wafer 0.80mm 180°Vertical 4Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

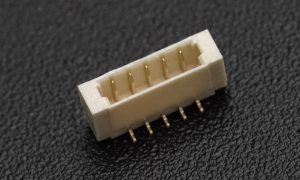

FWF08001-S05S13W5M
Wafer 0.80mm ,5Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 170 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S05S14W5M
Wafer 0.80mm 180°Vertical 5Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S05S24W5M
Wafer 0.80mm 180°Vertical 5Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

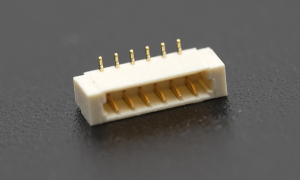

FWF08001-S06S13W5M
Wafer 0.80mm ,6Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 1731 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S06S14W5M
Wafer 0.80mm 180°Vertical 6Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S06S24W5M
Wafer 0.80mm 180°Vertical 6Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

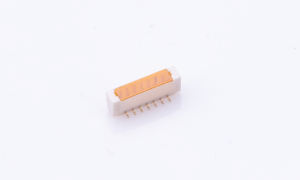

FWF08001-S07S13W5M
Wafer 0.80mm ,7Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 10 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S07S14W5M
Wafer 0.80mm 180°Vertical 7Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S07S24W5M
Wafer 0.80mm 180°Vertical 7Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

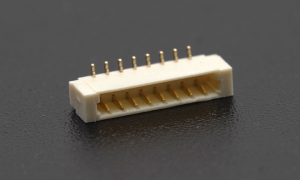

FWF08001-S08S13W5M
Wafer 0.80mm ,8Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-31 -
FWF08001-S08S14W5M
Wafer 0.80mm 180°Vertical 8Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S08S24W5M
Wafer 0.80mm 180°Vertical 8Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S09S13W5M
Wafer 0.80mm ,9Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 50 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S09S14W5M
Wafer 0.80mm 180°Vertical 9Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S09S24W5M
Wafer 0.80mm 180°Vertical 9Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

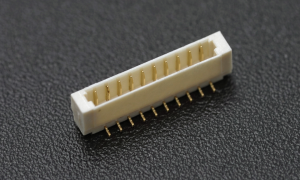

FWF08001-S10S13W5M
Wafer 0.80mm ,10Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 35 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S10S14W5M
Wafer 0.80mm 180°Vertical 10Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S10S24W5M
Wafer 0.80mm 180°Vertical 10Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S11S13W5M
Wafer 0.80mm ,11Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-31 -
FWF08001-S11S14W5M
Wafer 0.80mm 180°Vertical 11Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S11S24W5M
Wafer 0.80mm 180°Vertical 11Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

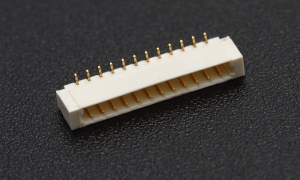

FWF08001-S12S13W5M
Wafer 0.80mm ,12Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 50 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S12S14W5M
Wafer 0.80mm 180°Vertical 12Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S12S24W5M
Wafer 0.80mm 180°Vertical 12Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S13S13W5M
Wafer 0.80mm ,13Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-31 -
FWF08001-S14S13W5M
Wafer 0.80mm ,14Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-31 -
FWF08001-S14S14W5M
Wafer 0.80mm 180°Vertical 14Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S14S24W5M
Wafer 0.80mm 180°Vertical 14Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S15S13W5M
Wafer 0.80mm ,15Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-31 -

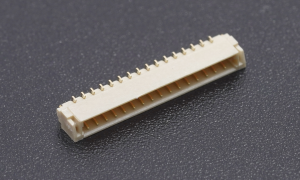

FWF08001-S16S13W5M
Wafer 0.80mm ,16Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 1640 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S16S14W5M
Wafer 0.80mm 180°Vertical 16Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S16S24W5M
Wafer 0.80mm 180°Vertical 16Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -

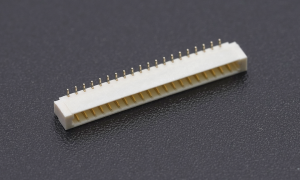

FWF08001-S20S13W5M
Wafer 0.80mm ,20Circuits ,180° Vertical(SMT) ,Gold ,LCP
Stock(pcs) 5 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08001-S20S14W5M
Wafer 0.80mm 180°Vertical 20Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27 -
FWF08001-S20S24W5M
Wafer 0.80mm 180°Vertical 20Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-27
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits2-10,12,16,20
- Pitch0.8mm
- Height2.8mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum30V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage200V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinLCP UL94V-0
- Compatible Parts
- PulgFHG08002
- Receptacle-
- TerminalFT08001
- Assembly shell-
