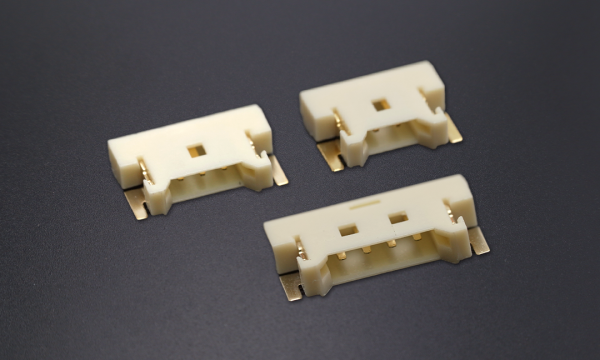

FWF12510 Wafer 1.25mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF12510-S02B14W5M-A
Wafer 1.25mm 90°Angle 2Circuits (SMT) H=2.1mm
Stock(pcs) 66 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

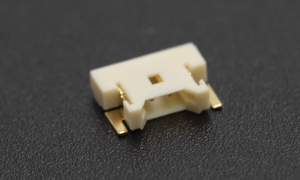

FWF12510-S02B14W5M-B
Wafer 1.25mm 90°Angle 2Circuits (SMT)
Stock(pcs) 515 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S02B14W5M-B1
Wafer 1.25mm 90°Angle 2Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1500 MOQ 1500 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

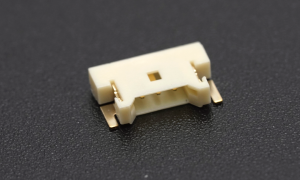

FWF12510-S03B14W5M-A
Wafer 1.25mm 90°Angle 3Circuits (SMT) H=2.1mm
Stock(pcs) 1890 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

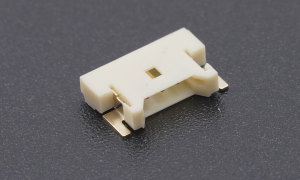

FWF12510-S03B14W5M-B
Wafer 1.25mm 90°Angle 3Circuits (SMT)
Stock(pcs) 1190 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

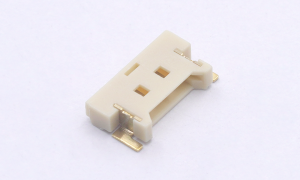

FWF12510-S04B14W5M-A
Wafer 1.25mm 90°Angle 4Circuits (SMT) H=2.1mm
Stock(pcs) 7 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

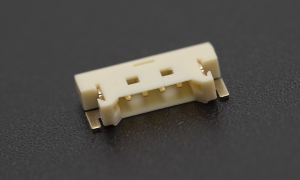

FWF12510-S04B14W5M-B
Wafer 1.25mm 90°Angle 4Circuits (SMT)
Stock(pcs) 321 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S05B14W5M-A
Wafer 1.25mm 90°Angle 5Circuits (SMT) H=2.1mm
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

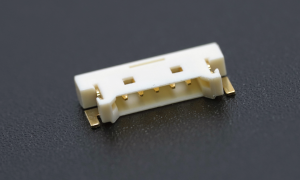

FWF12510-S05B14W5M-B
Wafer 1.25mm 90°Angle 5Circuits (SMT)
Stock(pcs) 586 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S06B14W5M-A
Wafer 1.25mm 90°Angle 6Circuits (SMT) H=2.1mm
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

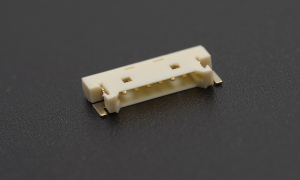

FWF12510-S06B14W5M-B
Wafer 1.25mm 90°Angle 6Circuits (SMT)
Stock(pcs) 3837 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S07B14W5M-A
Wafer 1.25mm 90°Angle 7Circuits (SMT) H=2.1mm
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

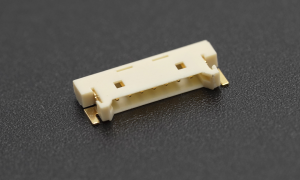

FWF12510-S07B14W5M-B
Wafer 1.25mm 90°Angle 7Circuits (SMT)
Stock(pcs) 325 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S08B14W5M-A
Wafer 1.25mm 90°Angle 8Circuits (SMT) H=2.1mm
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

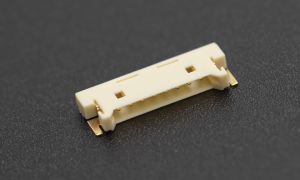

FWF12510-S08B14W5M-B
Wafer 1.25mm 90°Angle 8Circuits (SMT)
Stock(pcs) 165 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

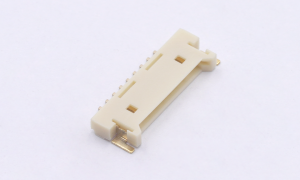

FWF12510-S09B14W5M-A
Wafer 1.25mm 90°Angle 9Circuits (SMT) H=2.1mm
Stock(pcs) 20 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

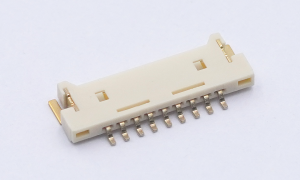

FWF12510-S09B14W5M-B
Wafer 1.25mm 90°Angle 9Circuits (SMT)
Stock(pcs) 20 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

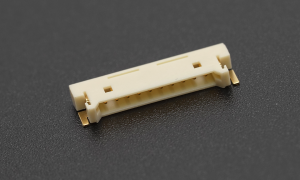

FWF12510-S10B14W5M-A
Wafer 1.25mm 90°Angle 10Circuits (SMT) H=2.1mm
Stock(pcs) 43 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

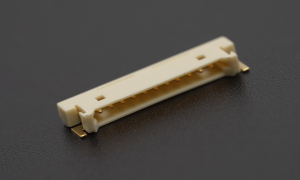

FWF12510-S11B14W5M-A
Wafer 1.25mm 90°Angle 11Circuits (SMT) H=2.1mm
Stock(pcs) 200 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

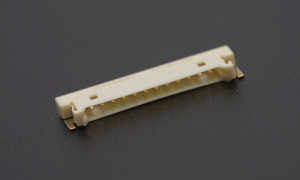

FWF12510-S12B14W5M-B
Wafer 1.25mm 90°Angle 12Circuits (SMT)
Stock(pcs) 5 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF12510-S14B14W5M-B
Wafer 1.25mm 90°Angle 14Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

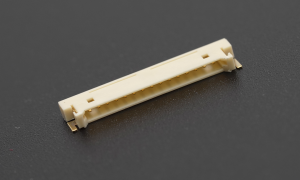

FWF12510-S15B14W5M-A
Wafer 1.25mm 90°Angle 15Circuits (SMT) H=2.1mm
Stock(pcs) 12 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}}
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits-H2.1mm2-12,14,15
- Circuits-H1.8mm2-9,12,14
- Pitch1.25mm
- Height1.8mm/2.1mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG12504
- Receptacle-
- TerminalFT12503
- Assembly shell-
