FFH25406 Female Header 2.54mm 90°Angle (DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FFH25406-D04B1001K6K

Female Header 2.54mm 90°Angle Double row 4Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D06B1001K6K

Female Header 2.54mm 90°Angle Double row 6Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

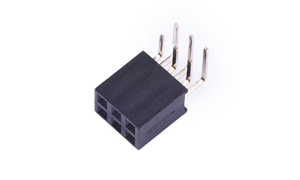

FFH25406-D06B1004K6K

Female Header 2.54mm ,Double row ,6Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	50	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-31

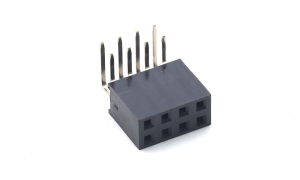

FFH25406-D08B1001K6K

Female Header 2.54mm 90°Angle Double row 8Circuits(DIP)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-27

FFH25406-D10B1001K6K

Female Header 2.54mm 90°Angle Double row 10Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D10B1004K6K

Female Header 2.54mm 90°Angle Double row 10Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

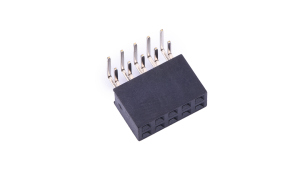

FFH25406-D10B1014K6K

Female Header 2.54mm ,Double row ,10Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	50	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-31

FFH25406-D12B1004K6K

Female Header 2.54mm ,Double row ,12Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-D12B1014K6K

Female Header 2.54mm 90°Angle Double row 12Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-D14B1011K6K

Female Header 2.54mm 90°Angle Double row 14Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D14B1014K6K

Female Header 2.54mm 90°Angle Double row 14Circuits(DIP)(1μ'')

Stock(pcs)	10	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-27

FFH25406-D16B1004K6K

Female Header 2.54mm 90°Angle Double row 16Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D16B1014K6K

Female Header 2.54mm 90°Angle Double row 16Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D20B1004K6K

Female Header 2.54mm 90°Angle Double row 20Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

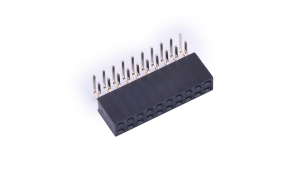

FFH25406-D20B1014K6K

Female Header 2.54mm ,Double row ,20Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	60	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-31

FFH25406-D22B1014K6K

Female Header 2.54mm 90°Angle Double row 22Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-D28B1001K6K

Female Header 2.54mm 90°Angle Double row 28Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D28B1004K6K

Female Header 2.54mm ,Double row ,28Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-D30B1001K6K

Female Header 2.54mm ,Double row ,30Circuits ,90° Angle(DIP) ,Gold flash ,PBT

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

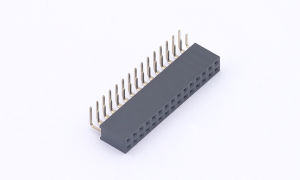

FFH25406-D30B1004K6K

Female Header 2.54mm ,Double row ,30Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	30	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-06-01

FFH25406-D34B1001K6K

Female Header 2.54mm 90°Angle Double row 34Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D36B1001K6K

Female Header 2.54mm 90°Angle Double row 36Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D40B1004K6K

Female Header 2.54mm 90°Angle Double row 40Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D40B1014K6K

Female Header 2.54mm ,Double row ,40Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-D44B1004K6K

Female Header 2.54mm ,Double row ,44Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-D50B1001K6K

Female Header 2.54mm 90°Angle Double row 50Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-D50B1014K6K

Female Header 2.54mm ,Double row ,50Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-D50B1051K6K

Female Header 2.54mm ,Double row ,50Circuits ,90° Angle(DIP) ,5μ" ,PBT

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	2000
Lead time	Estimated delivery date 2025-06-01

FFH25406-D60B1014K6K

Female Header 2.54mm ,Double row ,60Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	100	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-D64B1004K6K

Female Header 2.54mm ,Double row ,64Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

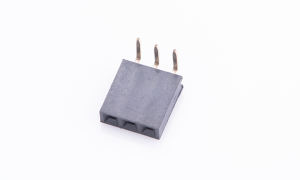

FFH25406-S03B1001K6K

Female Header 2.54mm 90°Angle Single row 3Circuits(DIP)

Stock(pcs)	205	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-27

FFH25406-S04B1001K6K

Female Header 2.54mm 90°Angle Single row 4Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-S04B1004K6K

Female Header 2.54mm 90°Angle Single row 4Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

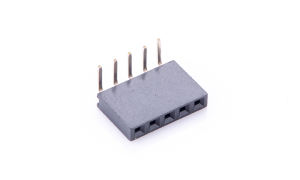

FFH25406-S05B1001K6K

Female Header 2.54mm ,Single row ,5Circuits ,90° Angle(DIP) ,Gold flash ,PBT

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-S05B1004K6K

Female Header 2.54mm 90°Angle Single row 5Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-S06B1004K6K

Female Header 2.54mm 90°Angle Single row 6Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

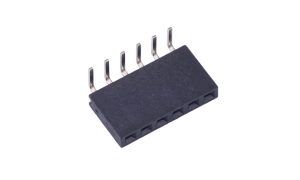

FFH25406-S06B1014K6K

Female Header 2.54mm 90°Angle Single row 6Circuits(DIP)(1μ'')

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-27

FFH25406-S10B1001K6K

Female Header 2.54mm 90°Angle Single row 10Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-S10B1014K6K

Female Header 2.54mm 90°Angle Single row 10Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-S22B1014K6K

Female Header 2.54mm 90°Angle Single row 22Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-S25B1001K6K

Female Header 2.54mm 90°Angle Single row 25Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

FFH25406-S26B1004K6K

Female Header 2.54mm ,Single row ,26Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	400	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-T06B1004K6K

Female Header 2.54mm 90°Angle Three row row 6Circuits(DIP)

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	2000
Lead time	Estimated delivery date when out of stock 2025-05-27

FFH25406-T06B1004K6L

Female Header 2.54mm ,Three row ,6Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	100	MOQ	10000
Lead time	Estimated delivery date 2025-05-31

FFH25406-T21B1004K6K

Female Header 2.54mm 90°Angle Three row row 21Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-27

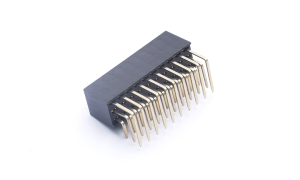

FFH25406-T30B1004K6K

Female Header 2.54mm ,Three row ,30Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	10	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-06-01

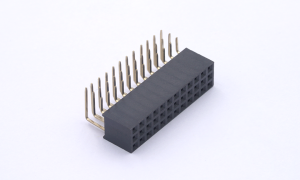

FFH25406-T36B1004K6K

Female Header 2.54mm ,Three row ,36Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	10	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-06-01

FFH25406-T39B1004K6K

Female Header 2.54mm ,Three row ,39Circuits ,90° Angle(DIP) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-05-31

FFH25406-T39B1014K6K

Female Header 2.54mm ,Three row ,39Circuits ,90° Angle(DIP) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FFH25406-T75B1001K6K

Female Header 2.54mm ,Three row ,75Circuits ,90° Angle(DIP) ,Gold flash ,PBT

Stock(pcs)	0	Status	Active
MPQ	100	MOQ	1000
Lead time	Estimated delivery date 2025-06-01

FH25406-D22B1014K6K

Female Header 2.54mm 90°Angle Double row 22Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Discontinued
MPQ	1	MOQ	1
Lead time	Estimated delivery date 2025-05-31

Category
CategoryFemale header-PCB socket Pitch：2.54mm （DIP）
Circuits for single row2-40
Circuits for Double row4-80
Circuits for triplex row6-120
Pitch2.54mm
Entry Angle90° Angle
Color - ResinBlack
Electrical
Current - Maximum per Contact3.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-40ºC~+105ºC
Material and Plating
Material-MetalBrass
Material - Plating MatingGold
Material - Plating TerminationGold/Tin
Material - ResinPBT/PA6T UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

FFH25406 series.pdf
