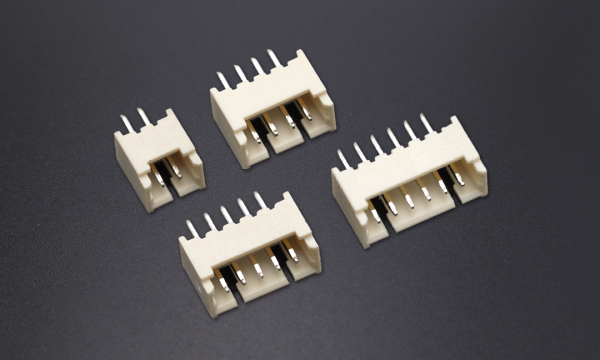

FWF12506 Wafer 1.25mm 180°Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

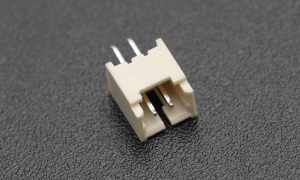

FWF12506-S02S24W5B
Wafer 1.25mm 180°Vertical 2Circuits (DIP)(HF)
Stock(pcs) 1896 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

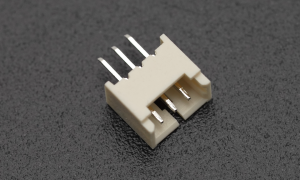

FWF12506-S03S24W5B
Wafer 1.25mm 180°Vertical 3Circuits (DIP)
Stock(pcs) 5262 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

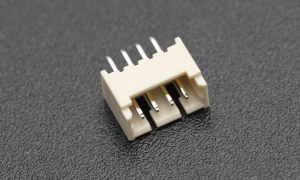

FWF12506-S04S24W5B
Wafer 1.25mm 180°Vertical 4Circuits (DIP)
Stock(pcs) 1895 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

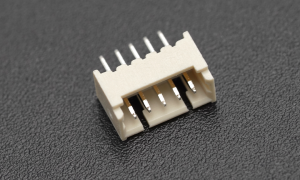

FWF12506-S05S24W5B
Wafer 1.25mm 180°Vertical 5Circuits (DIP)
Stock(pcs) 2872 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

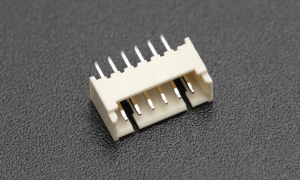

FWF12506-S06S24W5B
Wafer 1.25mm 180°Vertical 6Circuits (DIP)
Stock(pcs) 575 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

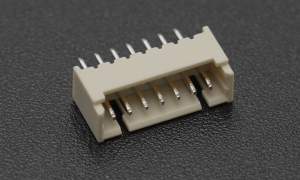

FWF12506-S07S24W5B
Wafer 1.25mm 180°Vertical 7Circuits (DIP)
Stock(pcs) 803 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

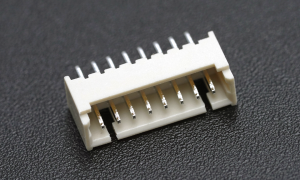

FWF12506-S08S24W5B
Wafer 1.25mm 180°Vertical 8Circuits (DIP)
Stock(pcs) 543 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

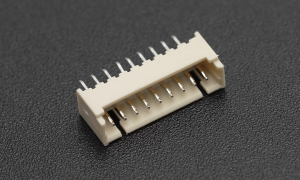

FWF12506-S09S24W5B
Wafer 1.25mm 180°Vertical 9Circuits (DIP)
Stock(pcs) 845 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

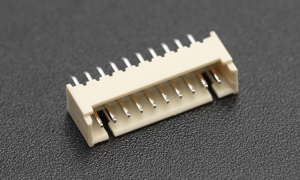

FWF12506-S10S24W5B
Wafer 1.25mm 180°Vertical 10Circuits (DIP)
Stock(pcs) 87 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

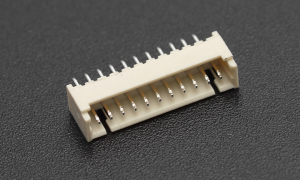

FWF12506-S11S24W5B
Wafer 1.25mm 180°Vertical 11Circuits (DIP)
Stock(pcs) 20 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

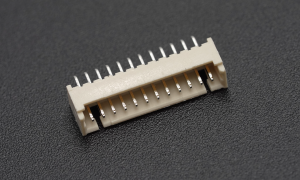

FWF12506-S12S24W5B
Wafer 1.25mm 180°Vertical 12Circuits (DIP)
Stock(pcs) 246 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

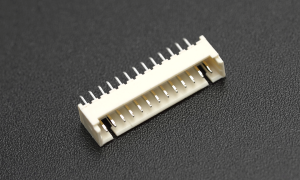

FWF12506-S13S24W5B
Wafer 1.25mm 180°Vertical 13Circuits (DIP)
Stock(pcs) 30 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

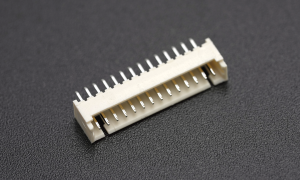

FWF12506-S14S24W5B
Wafer 1.25mm 180°Vertical 14Circuits (DIP)
Stock(pcs) 1020 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

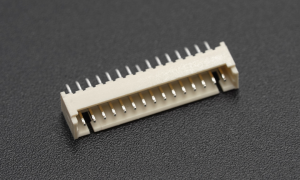

FWF12506-S15S24W5B
Wafer 1.25mm 180°Vertical 15Circuits (DIP)
Stock(pcs) 890 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF12506-S15S24W5L
Wafer 1.25mm 180°Vertical 15Circuits (DIP)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-06-04 -

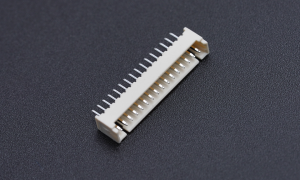

FWF12506-S16S24W5B
Wafer 1.25mm 180°Vertical 16Circuits (DIP)
Stock(pcs) 16 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31
- Category
- CategoryWafer 180°Vertical (DIP)
- Circuits2-16
- Pitch1.25mm
- Height4.7mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA46 UL94V-0
- Compatible Parts
- PulgFHG12502
- Receptacle-
- TerminalFT12501
- Assembly shell-
