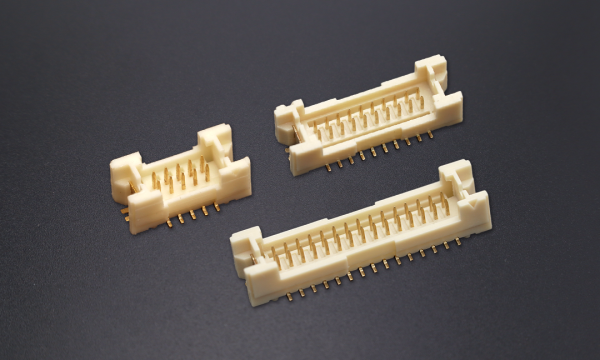

FWF12511 Wafer 1.25mm 180°Vertical (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

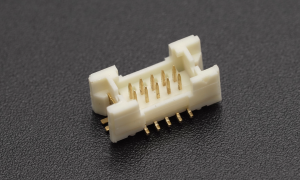

FWF12511-D10S14W5M
Wafer 1.25mm 180°Vertical 10Circuits (SMT)
Stock(pcs) 10 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

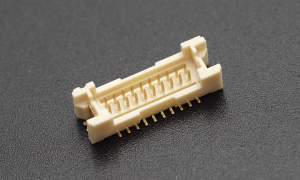

FWF12511-D20S14W5M
Wafer 1.25mm 180°Vertical 20Circuits (SMT)
Stock(pcs) 23 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

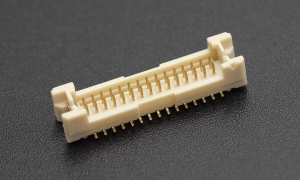

FWF12511-D30S14W5M
Wafer 1.25mm 180°Vertical 30Circuits (SMT)
Stock(pcs) 213 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

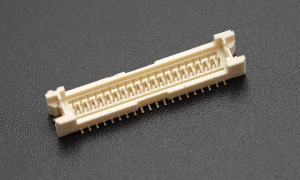

FWF12511-D40S14W5M
Wafer 1.25mm 180°Vertical 40Circuits (SMT)
Stock(pcs) 149 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits10,20,30,40
- Pitch1.25mm
- Height4.8mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG12505
- Receptacle-
- TerminalFT12504
- Assembly shell-
