FFC05011 FPC/FFC connector 0.5mm Lower Contact(H2.0)(SMT)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

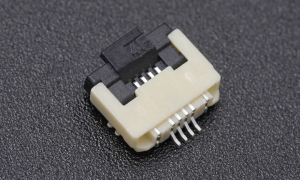

FFC05011-04SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 4Circuits(2mm)(SMT)

Stock(pcs)	1732	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

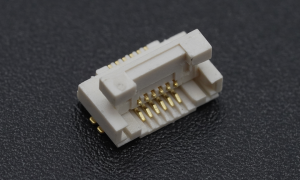

FFC05011-06SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 6Circuits(2mm)(SMT)

Stock(pcs)	1730	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-07SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 7Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

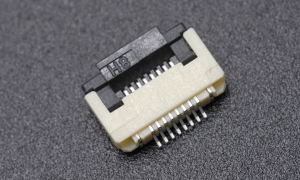

FFC05011-08SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 8Circuits(2mm)(SMT)

Stock(pcs)	1283	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-09SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 9Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

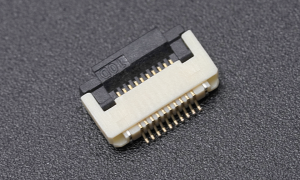

FFC05011-10SBB114W5M

FPC/FFC connector 0.5mm Lower Contact 10Circuits(2mm)(SMT)

Stock(pcs)	1234	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

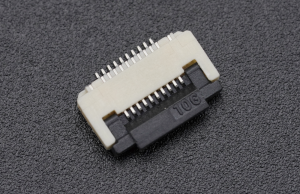

FFC05011-10SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 10Circuits(2mm)(SMT)

Stock(pcs)	1040	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-11SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 11Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

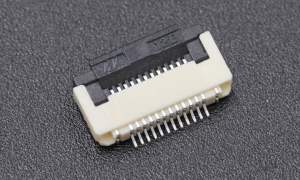

FFC05011-12SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 12Circuits(2mm)(SMT)

Stock(pcs)	271	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-13SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 13Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

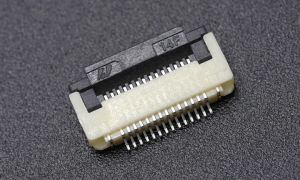

FFC05011-14SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 14Circuits(2mm)(SMT)

Stock(pcs)	3042	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

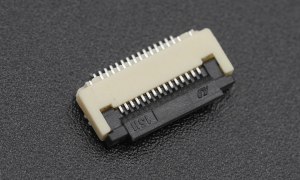

FFC05011-15SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 15Circuits(2mm)(SMT)

Stock(pcs)	1573	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-16SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 16Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

FFC05011-17SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 17Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

FFC05011-18SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 18Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

FFC05011-20SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 20Circuits(2mm)(SMT)

Stock(pcs)	764	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-21SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 21Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

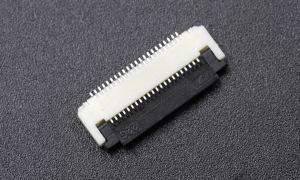

FFC05011-22SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 22Circuits(2mm)(SMT)

Stock(pcs)	1674	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-23SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 23Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

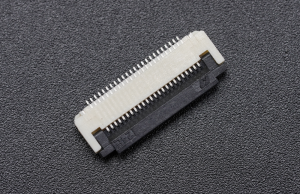

FFC05011-24SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 24Circuits(2mm)(SMT)

Stock(pcs)	24	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-25SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 25Circuits(2mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date 2025-06-27

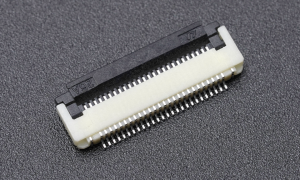

FFC05011-26SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 26Circuits(2mm)(SMT)

Stock(pcs)	115	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

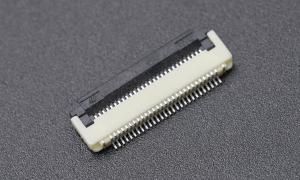

FFC05011-28SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 28Circuits(2mm)(SMT)

Stock(pcs)	36	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

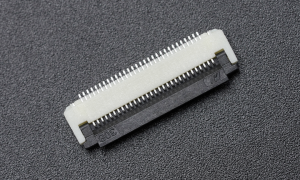

FFC05011-30SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 30Circuits(2mm)(SMT)

Stock(pcs)	132	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-32SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 32Circuits(2mm)(SMT)

Stock(pcs)	16838	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

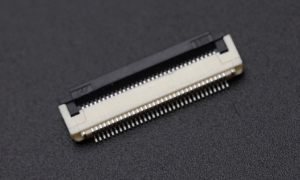

FFC05011-33SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 33Circuits(2mm)(SMT)

Stock(pcs)	5	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

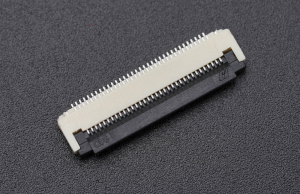

FFC05011-34SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 34Circuits(2mm)(SMT)

Stock(pcs)	1649	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-35SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 35Circuits(2mm)(SMT)

Stock(pcs)	234	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

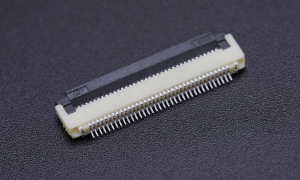

FFC05011-36SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 36Circuits(2mm)(SMT)

Stock(pcs)	17	Status	Active
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

FFC05011-40SBB114W5M

FPC/FFC connector 0.5mm Lower Contact 40Circuits(2mm)(SMT)

Stock(pcs)	4	Status	Discontinued
MPQ	2000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-27

Category
CategoryFPC/FFC Connector（SMT）
Circuits4,6-18,20-26,28,30,32-36
Pitch0.5mm
Contact directionBottom contact
Height2.0mm
Electrical
Current - Maximum per Contact0.50A
Voltage - Maximum50V
Contact Resistance30 mΩ Max
Insulation Resistance500 MΩ Min
Withstanding Voltage250V AC r.m.s
Temperature Range operating-25ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingTin
Material - Plating TerminationTin
Material - ResinPA9T UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

FFC05011 series.pdf
