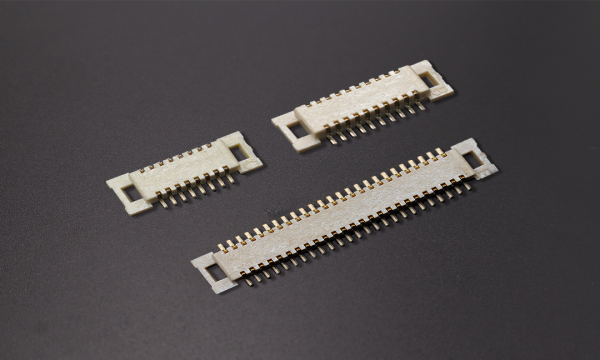

FBB05001-M Board to Board 0.5mm SMT
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

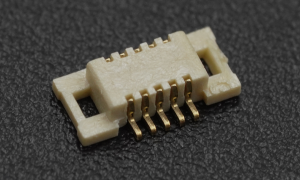

FBB05001-M10S1013W5M
Board to Board 180°Vertical 0.5mm 10Circuits
Stock(pcs) 34 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -

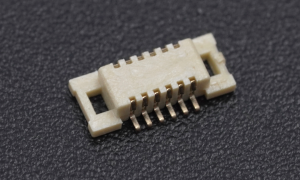

FBB05001-M12S1013W5M
Board to Board 180°Vertical 0.5mm 12Circuits
Stock(pcs) 109 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -

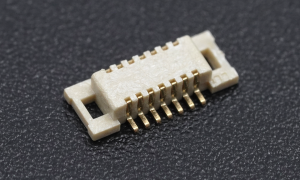

FBB05001-M14S1013W5M
Board to Board 180°Vertical 0.5mm 14Circuits
Stock(pcs) 97 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -

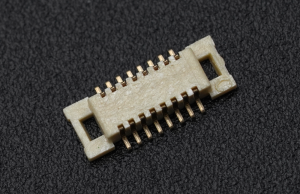

FBB05001-M16S1013W5M
Board to Board 180°Vertical 0.5mm 16Circuits
Stock(pcs) 105 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -
FBB05001-M20S1013W5M
Board to Board 180°Vertical 0.5mm 20Circuits
Stock(pcs) 4 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -
FBB05001-M22S1013W5M
Board to Board 180°Vertical 0.5mm 22Circuits
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-14 -

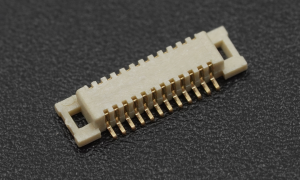

FBB05001-M24S1003W5M
Board to Board 180°Vertical 0.5mm 24Circuits
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-14 -

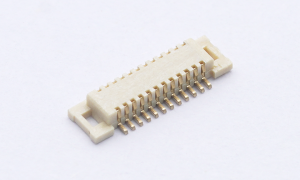

FBB05001-M24S1013W5M
Board to Board 180°Vertical 0.5mm 24Circuits
Stock(pcs) 22 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -
FBB05001-M30S1003W5M
Board to Board 180°Vertical 0.5mm 30Circuits
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-16 -

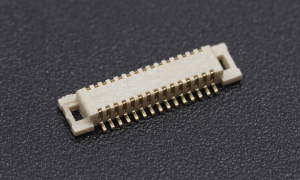

FBB05001-M30S1013W5M
Board to Board 180°Vertical 0.5mm 30Circuits
Stock(pcs) 57 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -
FBB05001-M34S1013W5M
Board to Board 180°Vertical 0.5mm 34Circuits
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-14 -
FBB05001-M40S1003W5M
Board to Board 180°Vertical 0.5mm 40Circuits(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-16 -

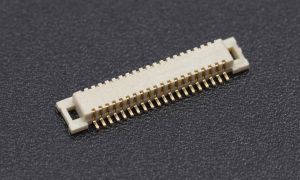

FBB05001-M40S1013W5M
Board to Board 180°Vertical 0.5mm 40Circuits(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-14 -

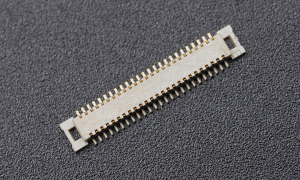

FBB05001-M50S1013W5M
Board to Board 180°Vertical 0.5mm 50Circuits
Stock(pcs) 16 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-14 -
FBB05001-M60S1013W5M
Board to Board 180°Vertical 0.5mm 60Circuits
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-05-17 -

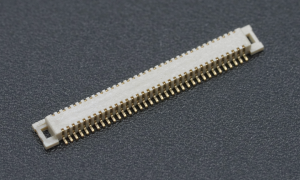

FBB05001-M70S1013W5M
Board to Board 180°Vertical 0.5mm 70Circuits
Stock(pcs) 29 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-16 -
FBB05001-M80S1013W5M
Board to Board 180°Vertical 0.5mm 80Circuits
Stock(pcs) 35 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock 2025-05-17 -
FBB05001-M80S1033W5M
Board to Board 180°Vertical 0.5mm 80Circuits
Stock(pcs) 0 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date 2025-05-17
- Category
- CategoryBoard to board - Male Pitch：0.5mm （SMT）
- Circuits10,12,14,16,20,22,24,30,34,40,50,60,70,80
- Mating height2.5mm
- Pitch0.5mm
- Durabiliy (mating cycles max)30
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum50V
- Contact Resistance40 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFBB05001-F
- Terminal-
- Assembly shell-
