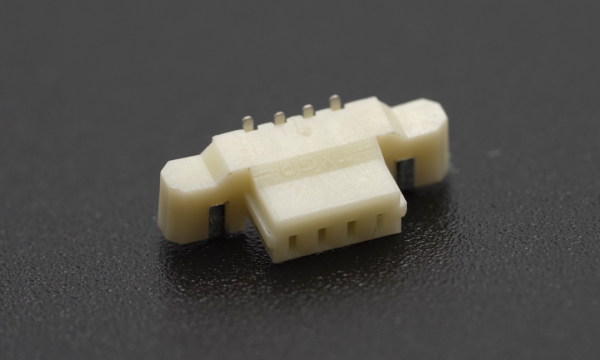

FWF12520 Wafer 1.25mm 180°Vertical(SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits4
- Pitch1.25mm
- Height5.3mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFWF12504,FWF12505,FWF12506,FWF12507
- Terminal-
- Assembly shell-
