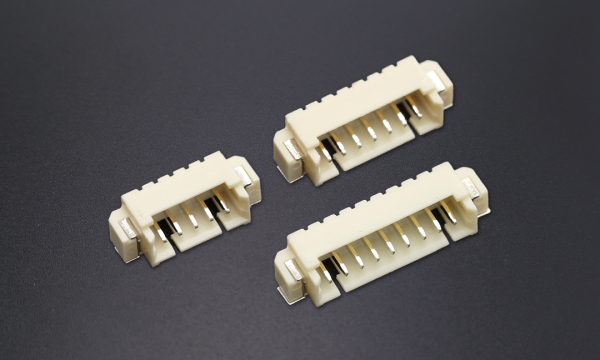

FWF12504 Wafer 1.25mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

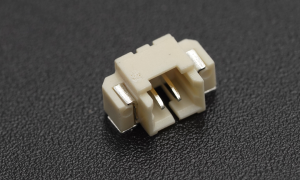

FWF12504-S02B24W5M
Wafer 1.25mm 90°Angle 2Circuits (SMT)
Stock(pcs) 504 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

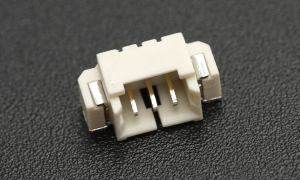

FWF12504-S03B24W5M
Wafer 1.25mm 90°Angle 3Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-19 -

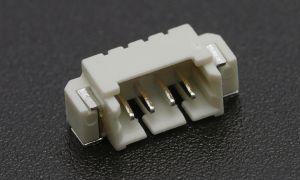

FWF12504-S04B24W5M
Wafer 1.25mm 90°Angle 4Circuits (SMT)
Stock(pcs) 1850 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

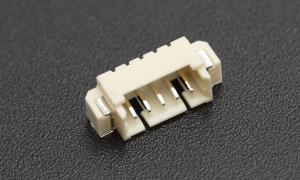

FWF12504-S05B24W5M
Wafer 1.25mm 90°Angle 5Circuits (SMT)
Stock(pcs) 1757 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -
FWF12504-S06B14W5M
Wafer 1.25mm 90°Angle 6Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-23 -

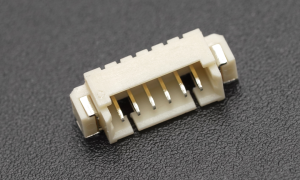

FWF12504-S06B24W5M
Wafer 1.25mm 90°Angle 6Circuits (SMT)
Stock(pcs) 1114 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

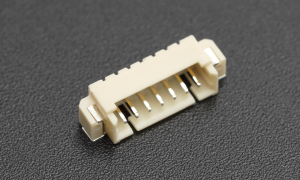

FWF12504-S07B24W5M
Wafer 1.25mm 90°Angle 7Circuits (SMT)
Stock(pcs) 40 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -
FWF12504-S08B14W5M
Wafer 1.25mm 90°Angle 8Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-23 -

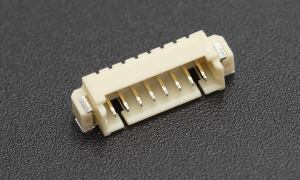

FWF12504-S08B24W5M
Wafer 1.25mm 90°Angle 8Circuits (SMT)
Stock(pcs) 145 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

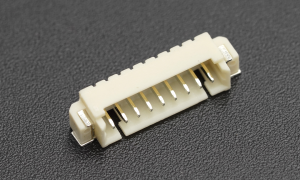

FWF12504-S09B24W5M
Wafer 1.25mm 90°Angle 9Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-19 -

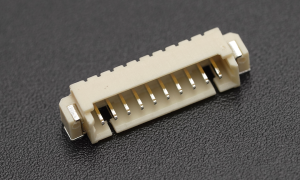

FWF12504-S10B24W5M
Wafer 1.25mm 90°Angle 10Circuits (SMT)
Stock(pcs) 977 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

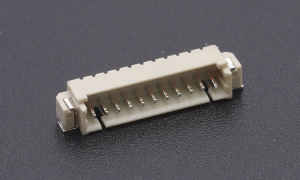

FWF12504-S11B24W5M
Wafer 1.25mm 90°Angle 11Circuits (SMT)
Stock(pcs) 282 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

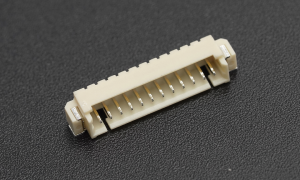

FWF12504-S12B24W5M
Wafer 1.25mm 90°Angle 12Circuits (SMT)
Stock(pcs) 79 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -
FWF12504-S13B24W5M
Wafer 1.25mm 90°Angle 13Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-19 -
FWF12504-S14B24W5M
Wafer 1.25mm 90°Angle 14Circuits (SMT)
Stock(pcs) 856 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19 -

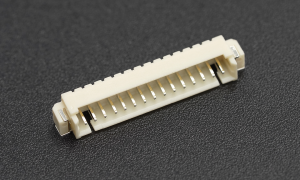

FWF12504-S15B24W5M
Wafer 1.25mm 90°Angle 15Circuits (SMT)
Stock(pcs) 1376 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-07-19
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2-15
- Pitch1.25mm
- Height5.3mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG12502
- Receptacle-
- TerminalFT12501
- Assembly shell-
